Location: | China |
Business Type: | Manufacturer, Exporter |
Brands: | RONGHUA |
Minimum order quantity: | |
Price: | Consultation |
Delivery time: | By contract |
Payment method: | L/C D/A T/T M/T D/D |

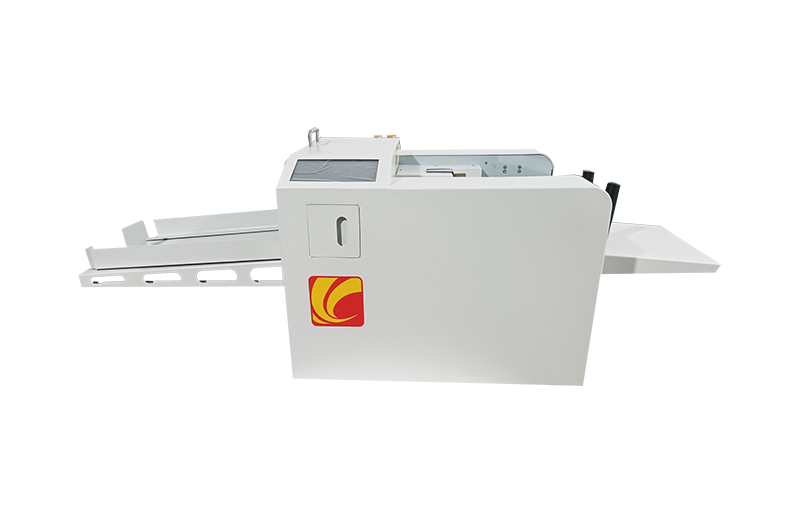

model | RD550A |
Appearance | table mode |
color | white |
work speed | 2speed |
automatic paper length measurement | √ |
free Indentation | √ |
cover Identation | √ |
equal part Identation | √ |
binding Identation | √ |
operate display | Color touch screen |
display interface | LCD |
display definition | standard definition |
counting mode | positive count |
user mode(indentation data storage) | 32group |
maximum feed size | 3200×600mm |
minimum feed size | 140*140mm |
creasing kinfe adapts to weight/thickness of paper | 70-400g |
perfoat knife adapts to weight/thickness of paper | 150g~250g |
paper type | |
paper feed mode | air suction |
feed direction | Center into the paper |
feed table lengthening | √ |
feed table cappacity | 70mm |
receive table capacity | 45mm |
Indentation width gap | 1.0mm |
Indentation direction | Positive and negative are available |
creasing /perforating precision | 0.2mm |
distance form the first mark to the paper hand | 1mm |
creasing speed | 4800sheets/hour(80sheets/min) |
maximum number of creasing /perforating tracks | 32group |
power supply | 220v/50hz |
power | 600W |
power supply voltage adaptive range | AC 200V-240V |
net weight | 50KG |
gross weight | 60KG |
dimension in using | 1280×600×465mm |
packing dimenstion | 580×660×620mm |
easily replaceable extraction tool | √ |
high precision programmable indentation setting | √ |
standard corsswise dotted blade | √ |
option engthways dotted blade | √ |
automatic correction of paper deviation with differetn thickness | √ |
Indentation depth and skew adjustment | √ |
paper noise suction system | X |
large capacity feed table | √ |
automatic paper feed system | √ |
We will reply you within 12 hours in working day.
We have two our own casting foundries and one CNC machining factory,we also have our own international sales department. We produce and sell all by ourselves.
We’re one of the leading company specialized in engineering machine , map folding machine , saddle stitching booklet maker machine , Digital Creaing machine, Gule binding machine , folding machine , pressure sealer , industry paper shredder, cardboard box shredder ...etc.
We have 12 modern types of energy-saving & environmentally-friendly production lines including a fully automated wax and shell making process flow line, as well as 4 heat treatment production lines. And our annual production capacity is over 20,000 tons.
We will do the inspection after every process.For the finished products,we will do 100% inspection according to the customers’ requirements and the international standard.
